In the colorful world of packaging design, there’s one word that keeps popping up—dieline. It may sound like something straight out of a science lab, but don’t let the name fool you. A dieline is one of the most important tools in the packaging process. Whether you’re designing a cereal box, a lotion bottle label, or a gift bag, the dieline is the unsung hero that keeps everything in shape—literally!
So, what exactly is a dieline? How is it used in packaging design? Why does it matter so much? Let’s take a deep dive into the wonderful world of dielines and discover how they help bring brilliant packaging to life.
What Is a Dieline?
Let’s start at the beginning. A dieline is like the blueprint for a package. It shows where to cut, fold, glue, or perforate a flat material—like cardboard or paperboard—so it can be turned into a 3D package.
Think of it like the lines on a paper airplane template. Without those lines, you’d have no clue where to fold or snip. The dieline shows designers and manufacturers exactly how the final package will take shape when it’s printed and assembled.

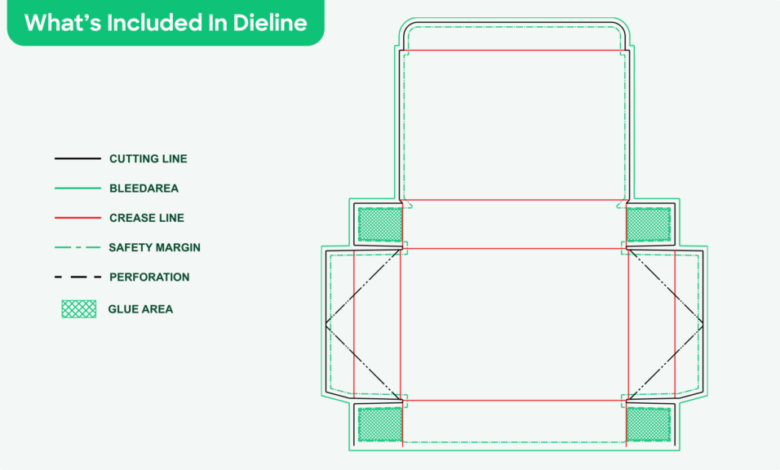

A Dieline Includes:
- Cut lines (where to slice the material)
- Fold lines (where to bend or crease)
- Bleed areas (extra space to avoid white edges)
- Safe zones (where to keep important info like logos or text)
- Glue tabs (areas that get adhesive)
Why Dielines Matter in Packaging Design
Now you might be thinking, “Can’t someone just eyeball it?” Nope! Packaging needs to be precise. One small misalignment can make a box look off or even unusable.
Here’s why dielines are so important:
- Accuracy: Makes sure everything fits like a glove
- Efficiency: Saves time and reduces waste during printing
- Consistency: Keeps packaging uniform across many units
- Creativity: Helps designers work with the exact dimensions
Without a dieline, designing packaging would be like baking without a recipe—messy and unpredictable.
How a Dieline Is Created
Creating a dieline might seem like rocket science at first, but it follows a clear step-by-step process. Usually, graphic designers use programs like Adobe Illustrator to map out the dieline on a flat surface.
Steps in Dieline Creation:
- Measure the product that will go inside the package
- Sketch the shape of the box, label, or package on screen
- Add guidelines for folds, cuts, and glue zones
- Double-check dimensions and export the file for printing
Let’s take a look at an example:
| Step | Task | Purpose |
| 1 | Measure the product | Ensure proper fit |
| 2 | Create box layout | Design the overall structure |
| 3 | Add fold/cut lines | Show where to crease or trim |
| 4 | Mark bleed and safety | Avoid cutting off vital parts |
| 5 | Finalize and test | Ready for printing and use |
Each dieline is a custom fit—like a tailored suit—for the product it’s meant to hold.
Tools Designers Use to Make Dielines
Designers don’t just wing it—they use special tools to make sure their dielines are spot-on.
Common Tools:
- Adobe Illustrator: Most popular for drawing dielines
- Esko ArtiosCAD: Built specifically for packaging design
- Packaging templates: Pre-made dielines that designers can tweak
- Die-cutting machines: Turn dielines into real packages
The best dieline designers know how to mix creativity with precision. It’s part art, part engineering—and a whole lot of fun.
What Are the Parts of a Dieline?
Let’s break it down even further. A dieline isn’t just a box with some lines. Each line means something special, and they’re often color-coded to avoid confusion.
Main Parts of a Dieline:
- Cut Line (Red): Shows where the shape will be cut out
- Fold Line (Green or Blue): Marks the spots to be creased
- Bleed Area (Pink): Extra artwork space past the cut line
- Safety Zone (Orange): Important stuff stays inside here
- Glue Tab (Gray): Where adhesive will be applied
These colors don’t print on the final package—they’re just guides for the printer and designer.
Dieline in Action: Real-Life Examples
To better understand how dielines work, let’s look at a few real-world examples.
Cereal Box
- Rectangular shape with tabs at the top and bottom
- Fold lines along the edges
- Glue tab along one side
- Bleed around the edges for colorful artwork
Perfume Box
- Fancy shape with custom curves
- More intricate fold lines
- Reinforced glue areas for strength
Soda Can Label
- Flat wrap-around strip
- No folds, just a single glue seam
- Wide bleed to wrap fully around the can
Every product has a unique dieline that matches its shape and purpose.
Common Mistakes to Avoid When Using a Dieline
Even pros can trip up sometimes. But knowing what to look out for can save time, money, and headaches.
Watch Out For:
- Ignoring bleed zones: Leads to ugly white edges
- Placing text outside safe areas: Info might get cut off
- Incorrect measurements: Package won’t fit the product
- Using low-resolution images: Makes the design blurry
- Flattening the dieline layer: Makes changes harder later on
Good design means thinking ahead, and that’s what a dieline helps you do.
How Dieline Connects Creativity and Manufacturing
One of the coolest things about a dieline is how it connects the dreamy world of design with the real world of printing and production. It’s where imagination meets engineering.
- Designers use it to shape their visual ideas
- Printers use it to guide machines
- Manufacturers use it to fold, glue, and build
Without the dieline, these teams would be speaking different languages. It’s the universal translator in the packaging process!
Dieline and Sustainability
Here’s something you might not have thought about—dielines can help the planet too!
A well-designed dieline can:
- Reduce waste by using materials efficiently
- Lower shipping costs with smaller, smarter packaging
- Encourage recyclability with simple shapes and fewer inks
So, in a way, dielines don’t just help make things look good—they help do good, too.
Future of Dielines: Where We’re Headed
With technology evolving every day, dielines are also getting smarter.
What’s Coming Next:
- 3D previews that show your dieline turning into a real box
- Augmented reality (AR) for testing packaging before printing
- AI-assisted dieline creation for faster and better designs
- Sustainable materials that require new dieline rules
The future is bright, and the dieline will be right there, shaping what’s next.
Final Thoughts: Why the Dieline Is a Designer’s Best Friend
Let’s face it—designers have a tough job. They have to make things that are not just pretty, but also practical. That’s where the dieline shines. It’s more than just a set of lines—it’s the bridge between creativity and reality.
From cereal boxes to skincare tubes, from soda labels to shipping cartons, the dieline is behind the scenes, doing the heavy lifting. It keeps your design clean, your product safe, and your customers happy.
So, the next time you hold a beautifully designed package, take a moment to thank the dieline—the hidden hero of packaging design.
Ready to start your own packaging project? Let the dieline lead the way!
